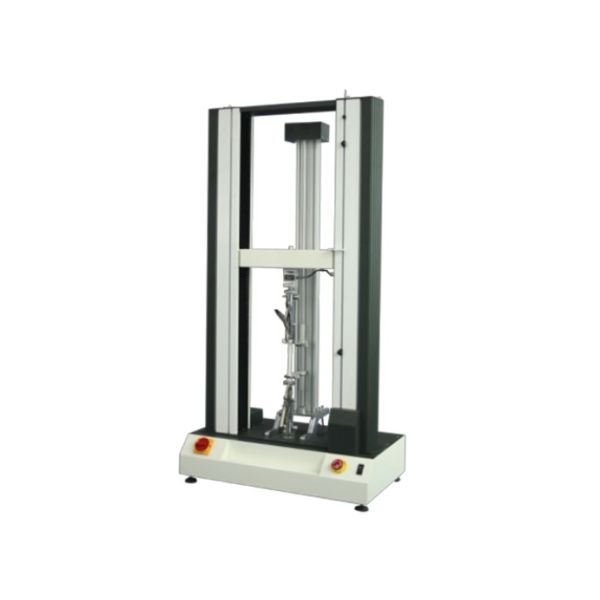

Plastics Tensile Strength Testing Machine 500mm/Min With Data
Analysis
Application of Tensile Strength Testing Machine
Computer Control Electronic Tensile Strength Testing Machine is mainly used for testing mechanical performance indexes of
various metals, nonmetals and composite materials such as
stretching, compression, bending, shearing, peeling, tearing, etc.
The equipment is suitable for manufacturing industries such as
metals,adhesives,pipes,profiles,aerospace,petrochemical
industry,waterproof coiled materials,wires and
cables,textiles,fibers,rubber,ceramics,food,medical
packaging,geotextiles,films,wood,paper and other manufacturing
industries as well as product quality supervision departments at
all levels.
Features of Tensile Strength Testing Machine
1. Accurate detect device, servo closed loop control systerm.
2. Many kind of comparison principle and test methods.
3. Automatic return to "start" position for easy sample changing.
4. Rugged build for repetitive testing.
5. Wide range of grips available.
6. Adopting windows platform,and all parameter settings can be
processed in dialog box
7. English interface or other language can be customized.
8. The pattern of test reports can be self-designated.Test data can
be displayed directly in the main screen.
9. Choosing translational,comparative mode at the same time to make
a number o curve data comparison.
10. With automatic magnification function, in order to achieve the
most appropriate size of the graphics;
11.With the user-defined test methods,with experimental data
analysis function
Adopted photoelectric encoder to measure the displacement, the
controller uses the embedded single-chip microcomputer structure
with multi-function software, which combined with measurement,
control, calculation and storage. It can automatic calculate the
stress, rate of elongation (need to add with extensometers),
tensile strength, elastic modulus, automated statistical results;
automatically recorded the biggest point, breaking point, the
designated point value or the rate of elongation; Using computer to
display the dynamic curves in the testing process and process the
data, After testing, it can re-analysis and editing the data by
amplifying the curves through the graphics processing module,
printing reports, product performance reached the international
advanced level.
| items | Tensile Strength Testing Machine |
| Sensor | Celtron load cell |
| Capacity | 100. 200. 500. 1000. 2000. 3000. 10000kg.20000kg |
| Unit Switchover | G, KG, N, LB |
| Display Device | LCD or PC |
| Resolution | 1/250,000 |
| Accuracy | ±0.5% |
| Max. Stroke | 1000mm (including fixture) |
| Test Speed | 0.1-500mm/min (adjustable ) |
| Motor | Panasonic Servo Motor |
| Screw | High Precise Ball Screw |
| Elongation Accuracy | 0.001mm |
| Power | AC220V, 50HZ or customized |
| Weight | Approx.500kg |
| Accessories parts | tensile clamp, computer system, English software CD, operation
CD,user manual |
Electrical measurement and control system:
1. With protect function of overload,over current, over voltage,
displacement limit,
emergency stop, etc .
2. The controller can control more load sensor, high integration,
stable and reliable, easy to adjust.
3. When finished testing, automatic stop.
4. Control system with programmable amplifier A/D conversion,
digital I/O, counting and pulse
happen (PWM), and other functions in one
5. Mechanical zero setting, automatic force measurement, zero
setting, calibration and save, highly integrated control circuit
